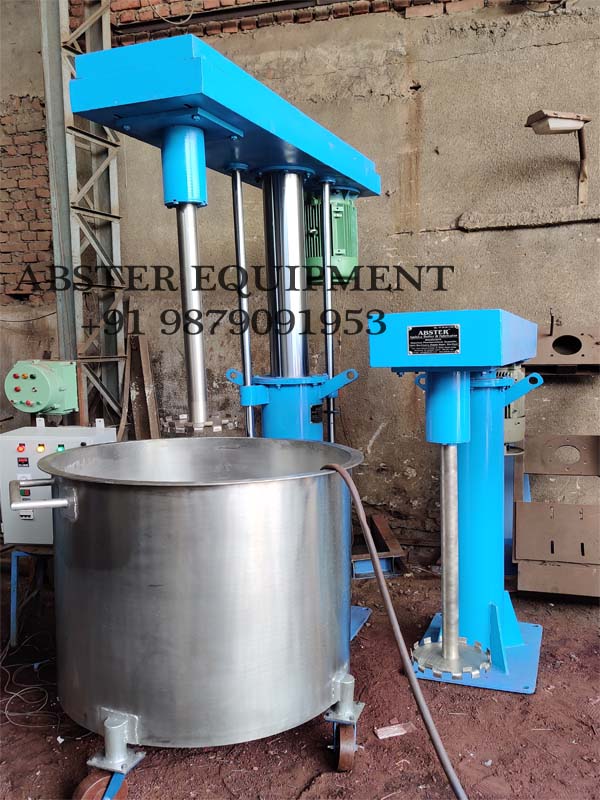

High speed disperser｜Hydraulic type

The High Speed Disperser Hydraulic Type has a wide range of applications, mainly suitable for coatings, dyes, pigments, paints, inks, adhesives, resins, ointments, cosmetics, paper making, food, rubber and plastics, composite materials, insulating materials, magnetic materials, printing and dyeing pastes, Liquid-solid wet dispersion, grinding, stirring, homogenizing, mixing and dissolving of chemical industry products such as black pulp and titanium dioxide pulp for composite fabrics.

Not only that, but the hydraulic lift high speed disperser is also suitable for high-efficiency equipment for liquid-liquid phase, liquid-solid phase mixing, dissolving, and dispersing. The high speed disperser has a high-speed rotating serrated dispersing disc, which can easily complete solid-liquid dispersion, wetting, and de-polymerization, so that the slurry of the material rolls in a circular flow, and generates a strong vortex, and the surface particles of the material slurry are spiral. , down to the bottom of the vortex, the material is fully circulated and turned to achieve the final required dispersion effect. The working mode of the high-speed disperser is very simple.

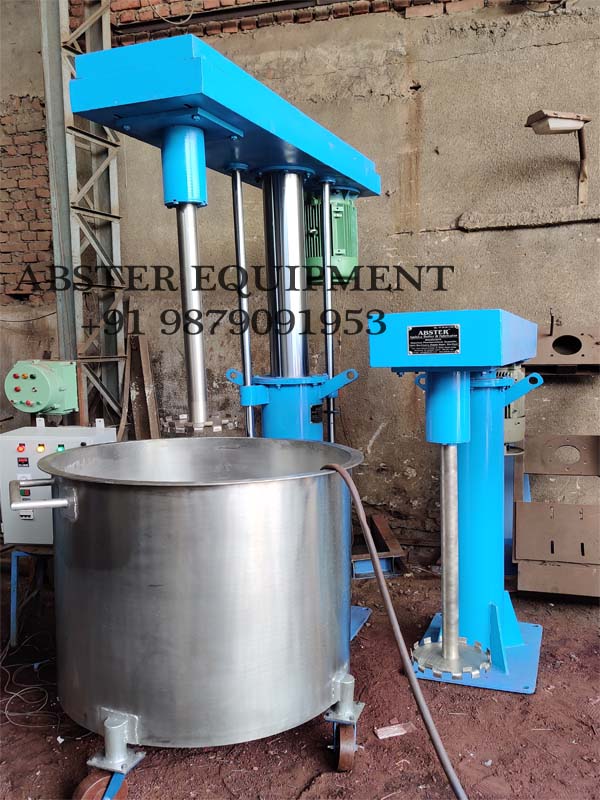

hydraulic-high-speed-dissolver-mixer

High Speed Disperser Hydraulic Type Working Principle

Through the high-speed rotation dispersing disc, the materials will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.

The hydraulic pump drives the hydraulic cylinder to go up and down, which drives the whole transmission and working set up and down.

Stainless steel cover (cylinder or sheath type lifting) can be lift up and down independently to ensure it always close with the tank.

Features of hydraulic lift high speed disperser

  • 1. Users can install and use various types of dispersing discs or mixing paddles according to their needs, such as flat disc sawtooth type, Sanyi paddle type, disc type, and other forms.

  • 2. The frequency converter of the high speed disperser adopts the stepless speed regulation design, and the range of dispersing raw materials is wider. The speed can be adjusted at random from 0 to 1440 rpm, which can meet the different requirements in the dispersing process of various processes. The Abster high speed disperser has a good dispersion effect. Save production time and improve product quality.

  • 3. The dispersing disc of the high speed disperser is made of high-quality stainless steel, which has the advantages of wear resistance, corrosion resistance, convenient color changing and cleaning, and wide application.

  • 4. The lifting method of the high speed disperser mainly adopts hydraulic lifting, which is stable, convenient, easy to use, and beautiful.

  • 5. The head of the high speed disperser can rotate freely at 360°, which can better satisfy the multi-purpose of one machine, and can change from one cylinder to another in a very short time, which improves the work efficiency and reduces the Manual labor intensity.

Technical Parameter

Model Motor power (kW) Speed (rpm) Disc Dia (mm) Material Capacity (L) Hydraulic power (kw) Lifting (mm) Weight (kg)
ABFHSD-1.5 1.5 0-1450rpm 120 Contact material is SS304 ≤60 0.55 600 500
ABFHSD-4 4 0-1450rpm 200 Contact material is SS304 ≤200 0.55 900 700
ABFHSD-7.5 7.5 0-1450rpm 230 Contact material is SS304 ≤400 0.55 900 900
ABFHSD-11 11 0-1450rpm 250 Contact material is SS304 ≤500 0.55 900 1100
ABFHSD-15 15 0-1450rpm 280 Contact material is SS304 ≤700 0.55 900 1200
ABFHSD-18.5 18.5 0-1450rpm 300 Contact material is SS304 ≤800 0.75 1100 1400
ABFHSD-22 22 0-1450rpm 350 Contact material is SS304 ≤1000 0.75 1100 1600
ABFHSD-30 30 0-1450rpm 400 Contact material is SS304 ≤1500 0.75 1100 1800
ABFHSD-37 37 0-1450rpm 400 Contact material is SS304 ≤2000 1.1 1600 2000
ABFHSD-45 45 0-1450rpm 450 Contact material is SS304 ≤2000 1.1 1600 2400
ABFHSD-55 55 0-1450rpm 500 Contact material is SS304 ≤2500 1.1 1600 2600
ABFHSD-75 75 0-1450rpm 550 Contact material is SS304 ≤4000 2.2 1800 2800
ABFHSD-90 90 0-950rpm 600 Contact material is SS304 ≤6000 2.2 1800 3200
ABFHSD-110 110 0-950rpm 700 Contact material is SS304 ≤8000 3 2100 3500
ABFHSD-132 132 0-950rpm 800 Contact material is SS304 stainless steel ≤10000 3 2300 4000

Remarks:

* The capacity is data based on materials with viscosity approx. 1000cps, specific gravity 1g/cm3 as medium. The model selection shall be based on the data such as the materials viscosity, density etc..

* Special operation condition, such as high temperature, high pressure, explosive, combustible and corrosive etc, details are required for correct model selection.
* If any change in the above table, subject shall prevail without notice.
* The table cannot include all products, please contact with our sales engineers for more information.
